Precise 3DOF motion for roll, pitch and heave, designed for demanding sustained use on aluminium-profile sim rigs. Delivery time: up to 4 weeks. Available to order. Maximum system load: 280 kg. Optimised heat dissipation, illustrated setup guidance, personal support and service-friendly robust mechanics.
REACTOR Motion moves the complete rig in three axes. Roll, pitch and heave translate vehicle behaviour, load transfer and track surface into physical feedback.
Fast response
Actuator speed up to 250 mm/s without Lag (<5ms)
Usable travel
120 mm travel per actuator.

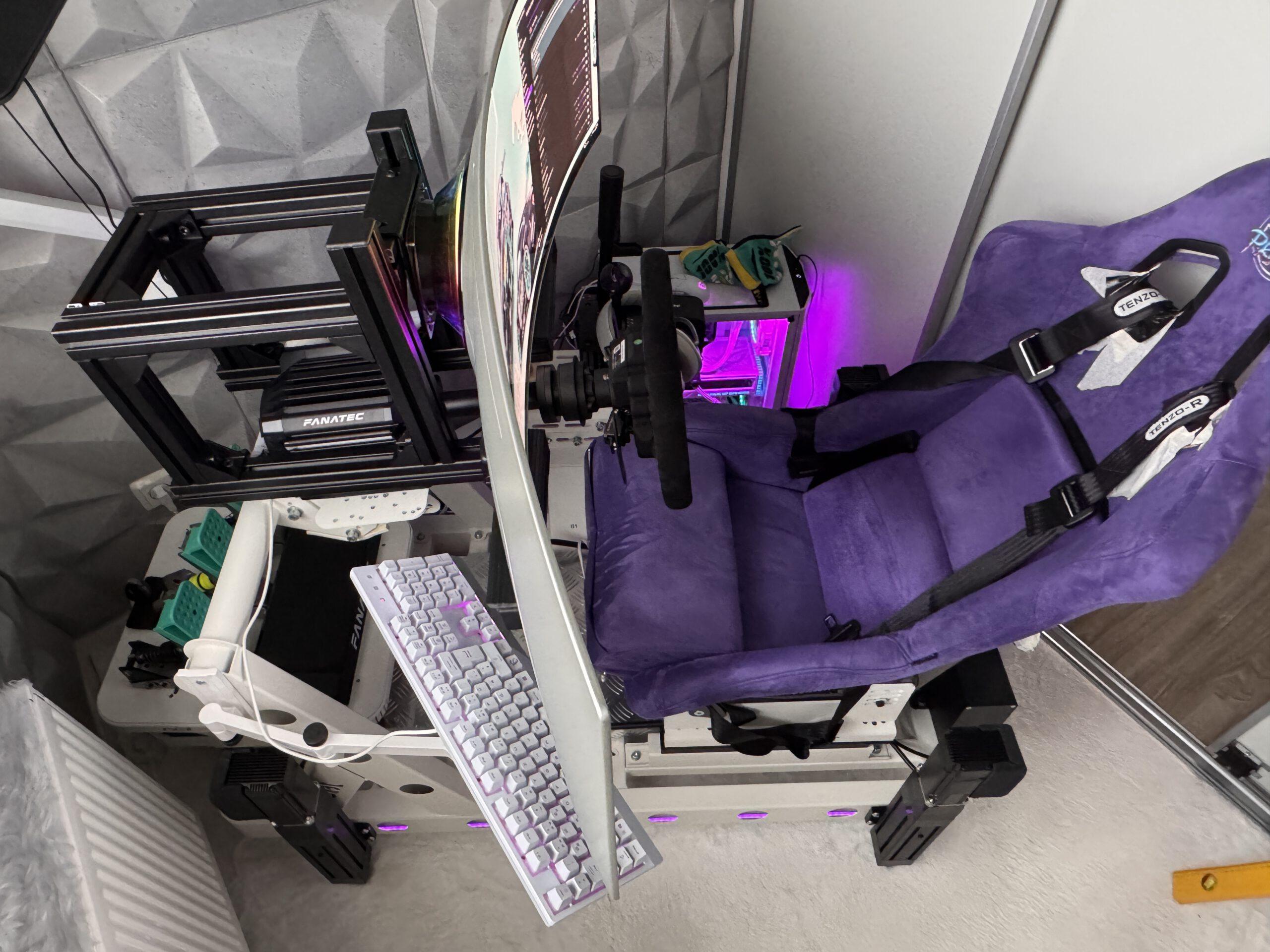

Built for existing rigs
Mounting for 40- and 45-series aluminium profiles or custom solutions.
02 — 3DOF THREE AXES
Roll. Pitch. Heave.
Roll
Lateral movement for cornering balance, kerbs and load transfer.
Pitch
Longitudinal movement for braking, acceleration and elevation changes.
Heave
Vertical movement for surface detail and compression.
03 — CONSTRUCTION & ENGINEERING
Built for demanding sustained use.
REACTOR Motion PRO combines significantly more robust, service-friendly mechanics with optimised heat dissipation for continuous and commercial operation.
Robust PRO mechanics
The universal adapter plate supports different rig geometries and is particularly well suited to aluminium profiles. Custom adapters upon request.

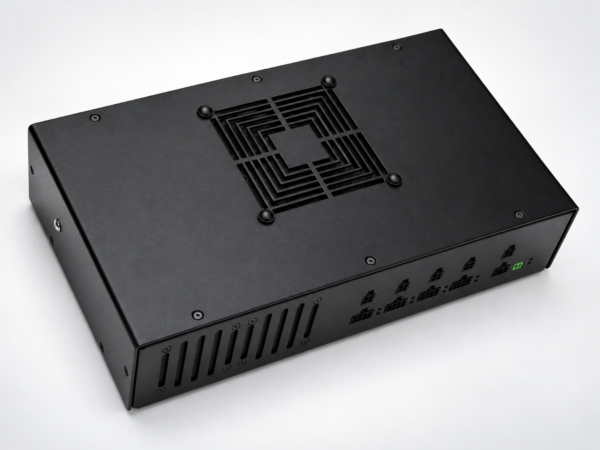

The slim control unit combines power, data connections and cooling in a very compact enclosure. It integrates cleanly on or near the rig and operates whisper-quietly.
04 — TECHNICAL DATA
Product specifications.
Speed
250 mm/s
Travel
120 mm
Movement resolution
< 0.1 mm
Maximum system load
280 kg
Supply voltage
230 V AC
Operating voltage
48 V DC
Average power consumption
Approx. 70 W*
Mounting
40- and 45-series aluminium profiles. And more upon request.
Interface
USB
Software compatibility
SimHub, FlyPT, SimTools
* Tested with a moderate profile and 200 kg platform weight; actual average consumption may vary.
05 — SCOPE OF DELIVERY

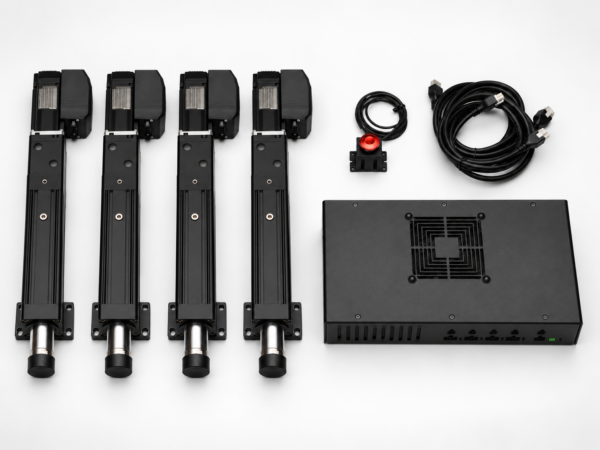

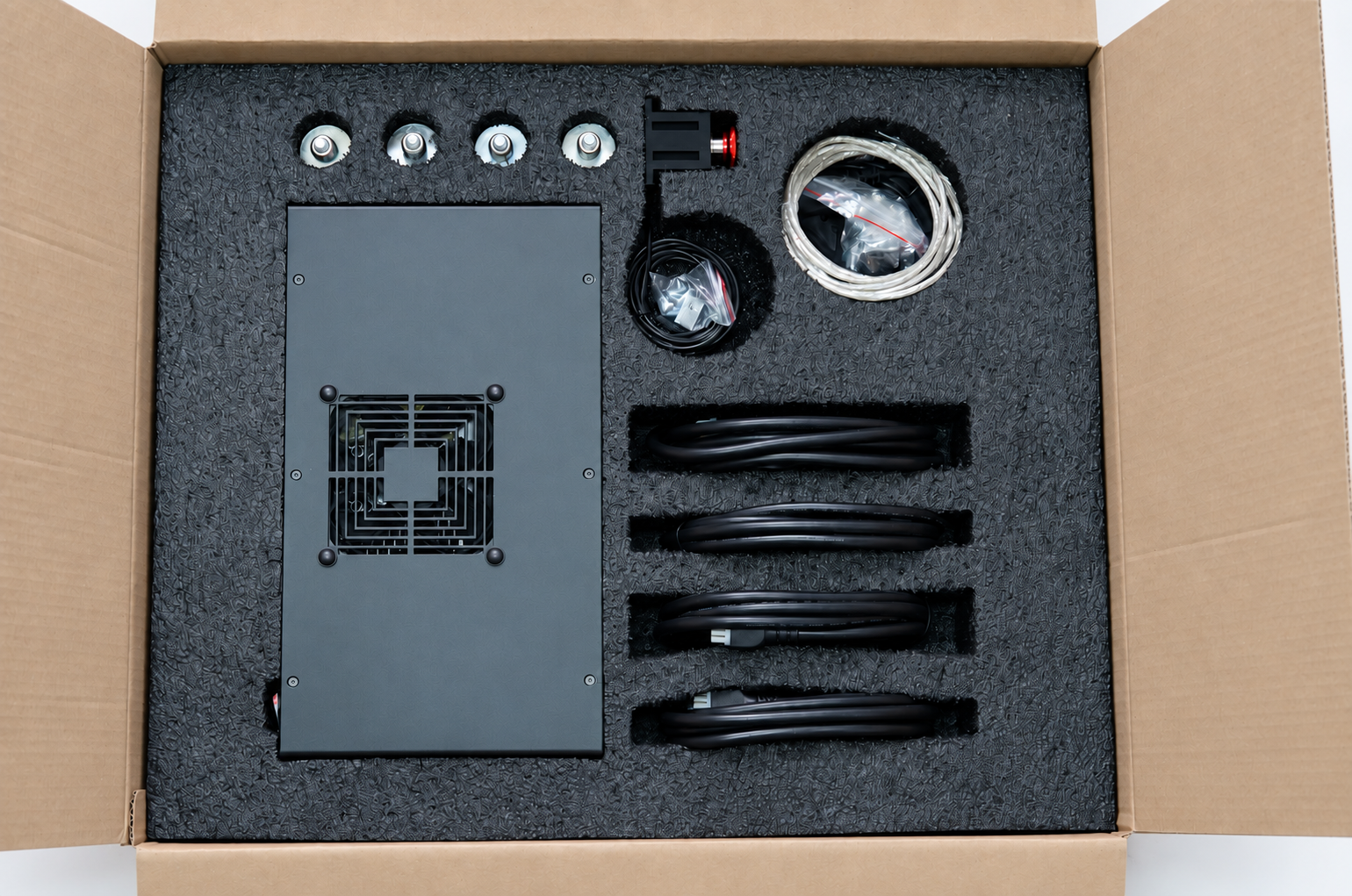

What is in the box.

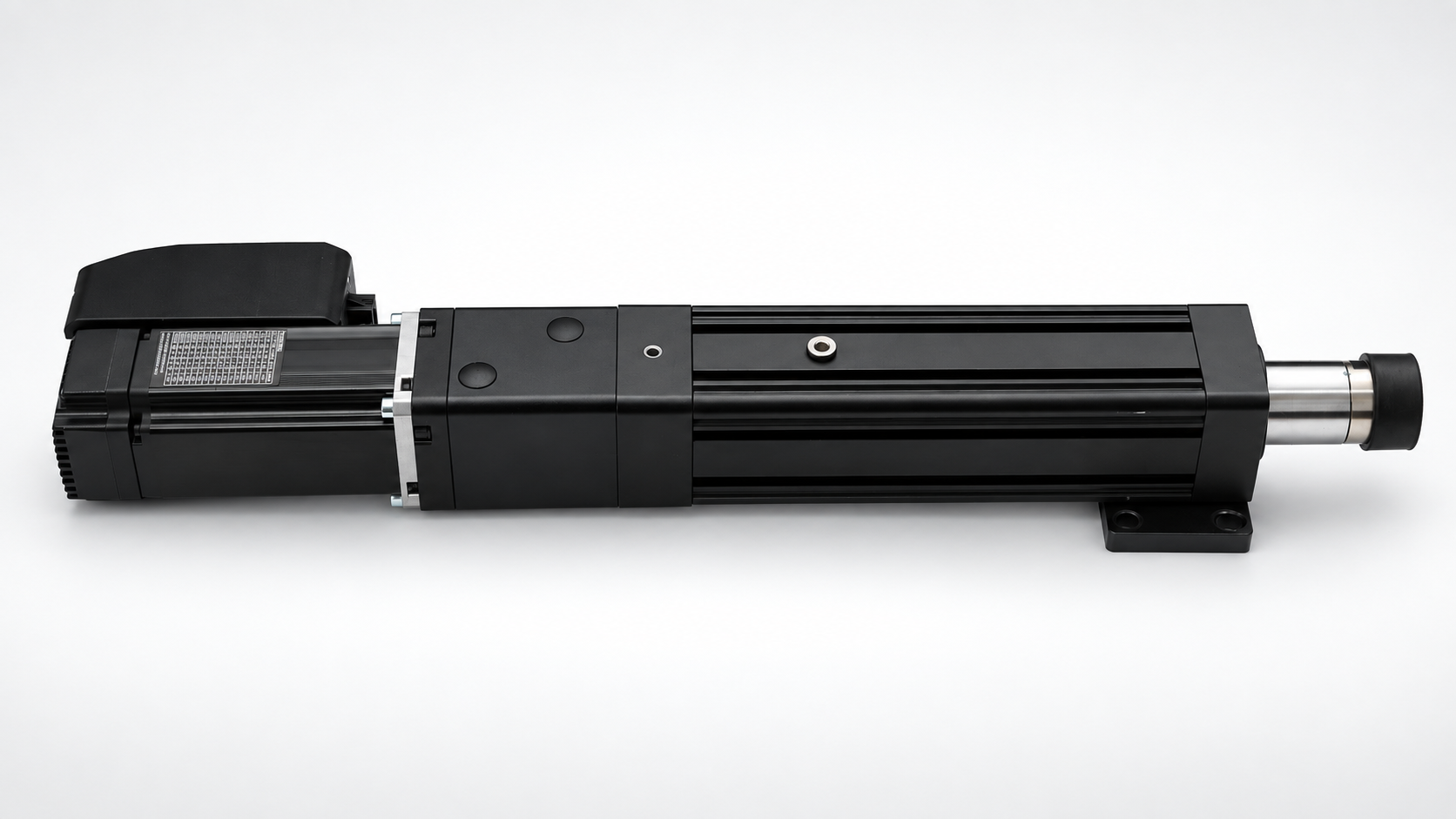

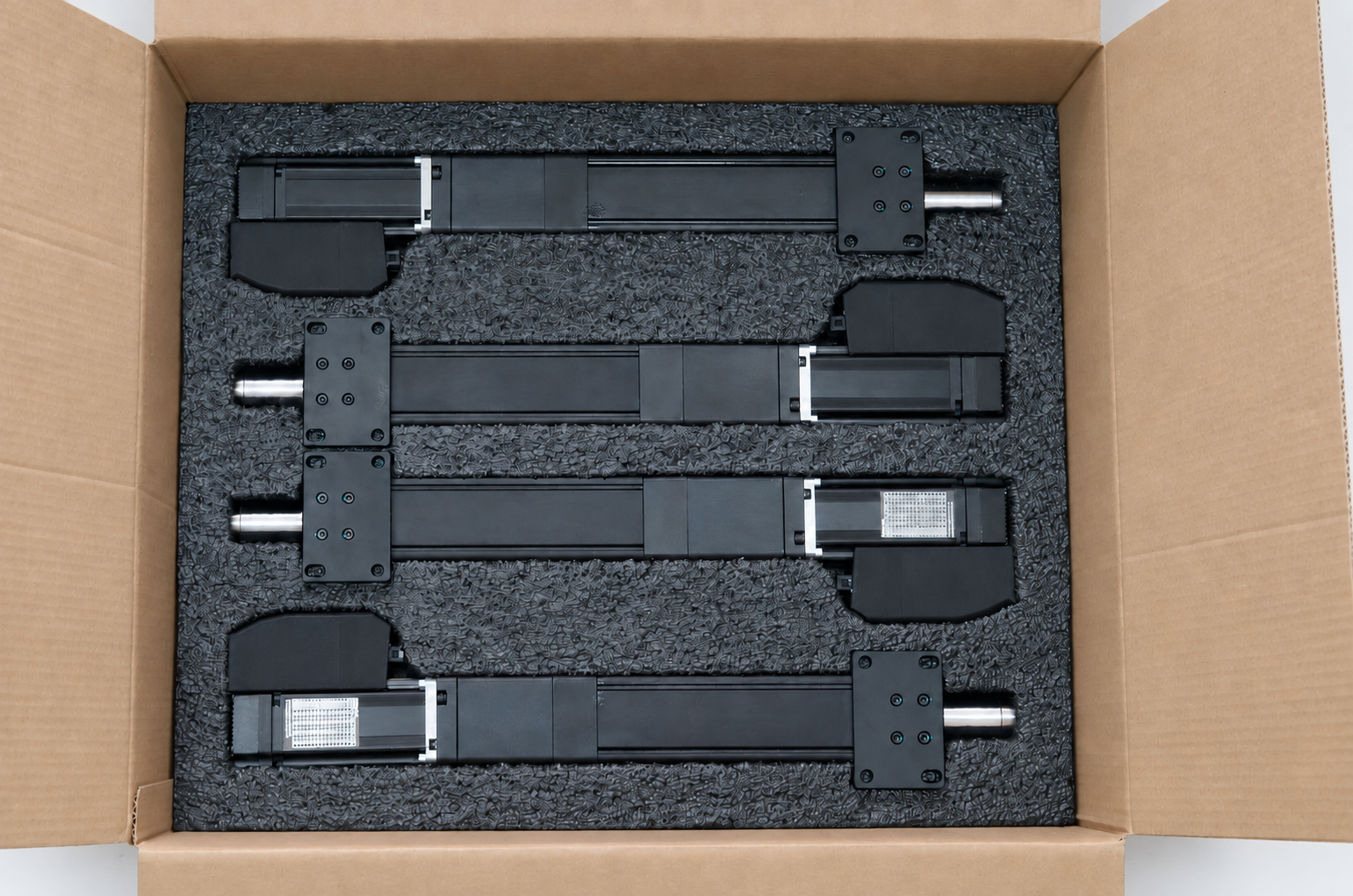

4 high-speed actuators
Control unit
Emergency stop
Mounting set for aluminium profiles
4 servo power cables: 2 × 1 m, 2 × 2 m
4 servo data cables: 2 × 1 m, 2 × 2 m

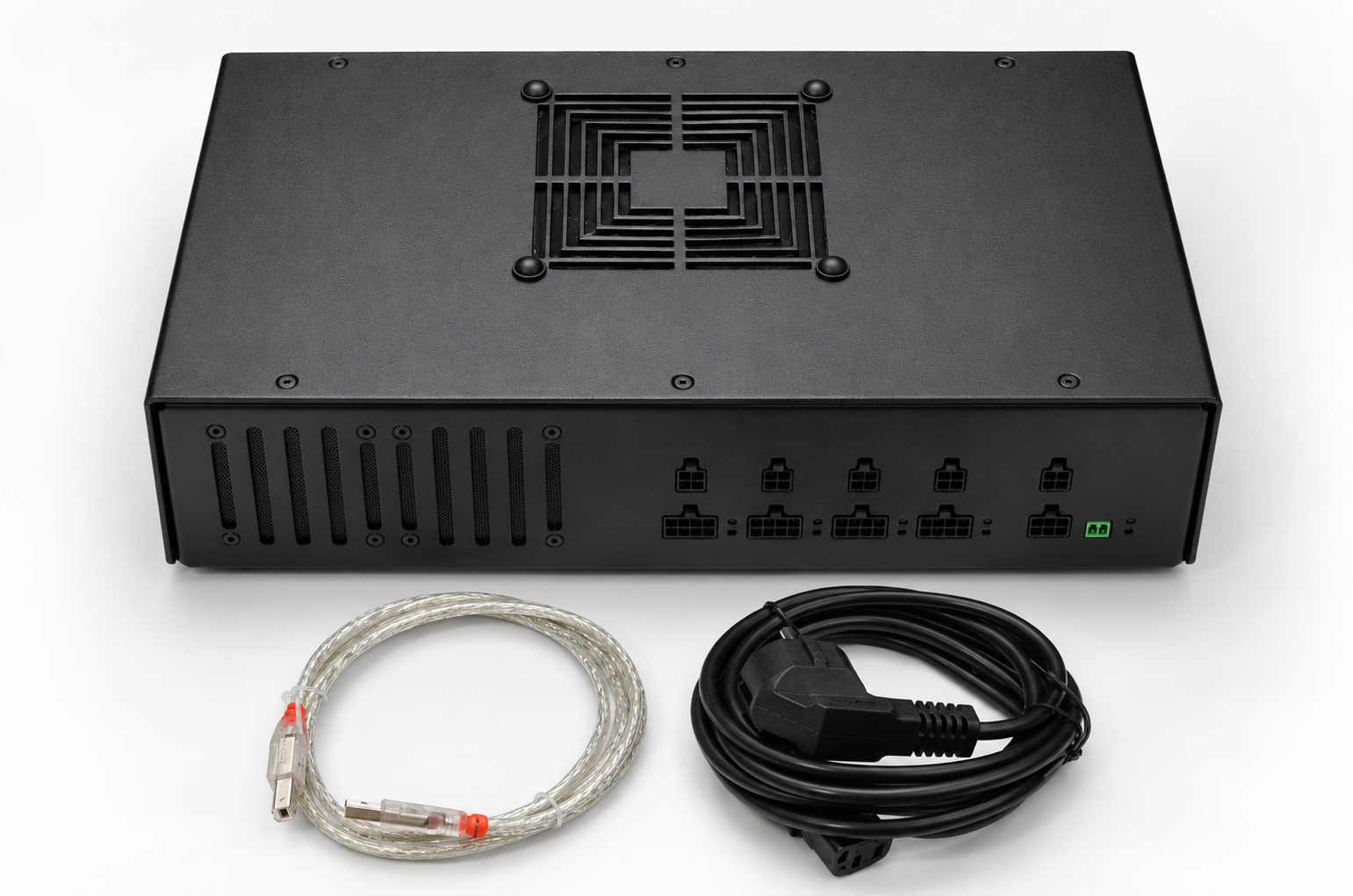

USB cable: 2 m
Power cable: 2 m
The scope shown follows the current WooCommerce product information. The order offer and supplied documentation remain authoritative.
06 — SIMHUB & SOFTWARE
Quick to start. Flexible to fine-tune.
REACTOR Motion PRO supports SimHub, FlyPT and SimTools. Our illustrated basic setup focuses on SimHub; licences and extensions from the respective providers are not included. Advanced users can then adjust effects, intensity and profiles individually.
The mounting set supports 40- and 45-series aluminium profiles: 40 × 80, 40 × 120, 40 × 160 and 45 × 90. Contact us with your rig model, profile dimensions and photos if you are unsure.
Which software is used?
REACTOR Motion PRO supports SimHub (recommended), FlyPT and SimTools. Our illustrated setup guidance focuses on SimHub. Software licences and extensions are not included.
How many actuators are included?
The system includes four high-speed actuators, a control unit, an emergency stop, the mounting set and the listed cables.
What is the maximum system load?
The maximum system load is 280 kg.
10 — PERSONAL ADVICE
Open questions?
A rig model, profile dimensions and a few photos are enough for an initial compatibility assessment.
